▶ 제품사양
<모바일 이용 시 좌우로 슬라이드해서 보세요>

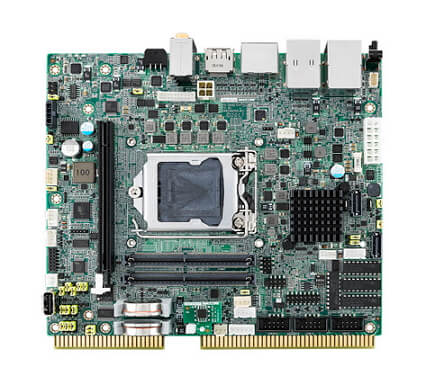

제품 종류 | DPX-S445-PNA1E | DPX-S445-QLA1E | DPX-S445-RYA1E | DPX-S445-WHA1E | DPX-S445-YSA1E | |
프로세서 | 중앙처리장치 | Intel Quad Core CPU / i7-7700T | Intel Quad Core CPU / i5-7500T | Intel Dual Core CPU / i3-7101E | Intel Quad Core CPU / i5-6500TE | Intel Dual Core CPU / G4400 |
주파수 | 2.9 GHz | 2.7 GHz | 3.9 GHz | 2.3 GHz | 3.3 GHz | |
메모리 | 맥스.용량 | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) |
입력/출력 | 컴 포트 | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) |
디지털 I/O | 32 input / 32 output | 32 input / 32 output | 32 input / 32 output | 32 input / 32 output | 32 input / 32 output | |
비디오 출력 | 3 x DP++ | 3 x DP++ | 3 x DP++ | 3 x DP++ | 3 x DP++ | |
USB3.0/2.0 | 3/8 (total 11) | 3/8 (total 11) | 3/8 (total 11) | 3/8 (total 11) | 3/8 (total 11) | |
이더넷 | 컨트롤러 | GbE x2 | GbE x2 | GbE x2 | GbE x2 | GbE x2 |
오디오 | 커넥터 | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN |
확장 | PCIe | Full speed Gen 3 PCI-E graphics expansion slot | Full speed Gen 3 PCI-E graphics expansion slot | Full speed Gen 3 PCI-E graphics expansion slot | Full speed Gen 3 PCI-E graphics expansion slot | Full speed Gen 3 PCI-E graphics expansion slot |
디스플레이 | 컨트롤러 | Integrated – High performance chipset graphics Intel GT2-530 | Integrated – High performance chipset graphics Intel GT2-530 | Integrated – High performance chipset graphics Intel GT2-530 | Integrated – High performance chipset graphics Intel GT2-530 | Integrated – High performance chipset graphics Intel GT2-530 |
보안 | 스램 | 8MB | 8MB | 8MB | 8MB | 8MB |
침입 입력 | 8 | 8 | 8 | 8 | 8 | |
TPM | 1.2 / 2.0 | 1.2 / 2.0 | 1.2 / 2.0 | 1.2 / 2.0 | 1.2 / 2.0 | |
이프롬, 룸, 드럼 | Y | Y | Y | Y | Y | |
